Steel frames
- Thickness of steel is 1,5 mm
- Galvanized steel, powder coating RAL 7035
- 2 ps. subconstructions for hinges (for twist hinges or V8600),
- 3 ps. For the opening width from 1001 mm or height from 2101 mm
- Opening for the lock at the height of the habndle fixing 1050 mm
- Dimensions according to DIN standards or ÖNORM
- Without deepening in the floor
- Gasket is included (in separate packing)
Advanced options
- Colour according to RAL
- Subconstruction for VX type of hinges
- Preaparation for doorcloser
- Preparation for electro-mechanical lock
- Preparation for reed contact Ademco d=19 mm
- Frame part of hinge V8100WF is nickel-plated
- Fire resistant gasket
Types of profiles

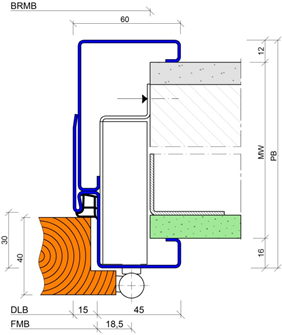

Profile 61 Corner frame
- Solid corner frame for dowel installation
- Can be installed on unplastered walls
- Anchoring or dowel installation
- Door casing on the side of a rebate according to drawing (see picture)
- Depth of the door casing from rabbet
- The width of the profile: 55 mm (see picture)
- For single/double wing doors
- BRMB = DLB + 60 mm
- BRMH = DLH + 30 mm
- Solid corner frame for wall installation
- Can be installed on unplastered walls
- Anchoring or dowel installation
- Door casing on the side of a rebate according to drawing (see picture)
- Laibung lt. Abbildung
- The width of the profile: 67 mm (see picture)
- For single/double wing doors
- BRMB = DLB + 50 mm
- BRMH = DLH + 25 mm

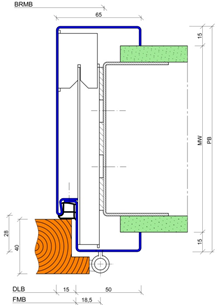

- 2-component surround frame for dowel installation
- For installation on finished walls
- The frame regulate depending on the thickness of the wall, fastenerrs sealant
- For wall fastening developed special trapezoidal anchor
- For walls with thickness: 100 – 330 мм
- For single/double wing doors
- BRMB = DLB + 68 mm
- BRMH = DLH + 34 mm
Profile FD 51 without rabbet
- BRMB = DLB + 80 mm
- BRMH = DLH + 40 mm

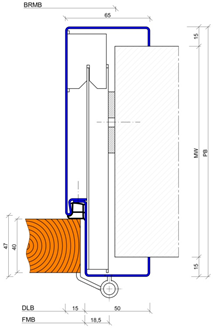

- 2-component surround frame for dowel installation
- For installation on finished walls
- The frame regulate (30 mm) depending on the thickness of the wall, fastenerrs sealant
- The bracket for a fastening
- The platband is on the rabbet side
- The platband on the opposite side (see picture)
- The thickness of the profile: 125 – 335 мм
- For single/double wing doors
- BRMB = DLB + 90 mm
- BRMH = DLH + 45 mm
- Solid corner frame for dowel installation
- Can be installed on unplastered walls
- Anchoring or dowel installation
- Door casing on the side of a rebate according to drawing (see picture)
- Laibung lt. Abbildung
- Width of the profile: 65 mm (see picture)
- For single/double wing doors
- BRMB = DLB + 66 mm
- BRMH = DLH + 33 mm
